安裝配件組套CLASSIC, FUTURA, FLEX, NOVA直接安裝

商品號: 101476

1 x 104833 Reducer G1/8 male x G1/4 female

1 x 104837 Reducer M6 male x G1/4 female

1 x 104838 Reducer M8x1 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

1 x 104855 Extension 45 mm G1/4 male x G1/4 female

1 x 104823 Angle 45° G1/4 male x G1/4 female

安裝配件組套STAR直接安裝

商品號: 101477

1 x 104833 Reducer G1/8 male x G1/4 female

1 x 104837 Reducer M6 male x G1/4 female

1 x 104838 Reducer M8x1 male x G1/4 female

x 104840 Reducer M10x1 male x G1/4 female

1 x 104855 Extension 45 mm G1/4 male x G1/4 female

1 x 104823 Angle 45° G1/4 male x G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA含 1.5 米軟管

商品號: 101481

1 x Reducer G1/8 male x G1/4 female (brass)

1 x Reducer M6 male x G1/4 female (brass)

1 x Reducer M8x1 male x G1/4 female (brass)

1 x Reducer M10x1 male x G1/4 female (brass)

1.5 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)

2 x Hose connector G1/4 male for hose i? 9.5 mm - push-lock (steel, zinc-plated)

1 x Mounting bracket CLASSIC, FUTURA, FLEX, NOVA 1-point G1/4 female (stainless steel)

1 x Angle 45° G1/4 male x G1/4 female (brass)

1 x Extension 45 mm G1/4 male x G1/4 female (brass)

安裝配件組套STAR含 3 米軟管

商品號: 101482

1 x Reducer G1/8 male x G1/4 female (brass)

1 x Reducer M6 male x G1/4 female (brass)

1 x Reducer M8x1 male x G1/4 female (brass)

1 x Reducer M10x1 male x G1/4 female (brass)

3 m Heavy Duty hose up to +100 °C (with NBR lining and fabric insert)

2 x Hose connector G1/4 male for hose i? 9.5 mm - push-lock (steel, zinc-plated)

1 x Mounting bracket STAR Standard Duty 1-point G1/4 female (stainless steel)

1 x Support flange STAR G1/4 male x G1/4 female (brass / plastic)

1 x Angle 45° G1/4 male x G1/4 female (brass)

1 x Extension 45 mm G1/4 male x G1/4 female (brass)

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷梁夾安裝

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷1點30mm梁夾安裝

商品號: 110068

1 x 109685 Bracket 1-point G1/4 female

1 x 109957 Beam clamp 30 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

1 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷1點65mm梁夾安裝含 1 米軟管

商品號: 110069

1 x 109685 Bracket 1-point G1/4 female

1 x 109958 Beam clamp 65 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

1 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷2點30mm梁夾安裝含 2 米軟管

商品號: 110070

1 x 109686 Bracket 2-point G1/4 female

2 x 109957 Beam clamp 30 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

0,25 m 109695 Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷2點65mm梁夾安裝含 2 米軟管

商品號: 110071

1 x 109686 Bracket 2-point G1/4 female

2 x 109958 Beam clamp 65 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

0,25 m 109695 Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷網掛

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷1點網掛含 1 米軟管

商品號: 110072

1 x 109689 Bracket cage hanger 1-point G1/4 female

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

1 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套CLASSIC, FUTURA, FLEX, NOVA標準載荷2點網掛含 2 米軟

商品號: 110073

1 x 109690 Bracket cage hanger 2-point G1/4 female

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

0,25 m 109695 Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

附件及安裝配件組套STAR標準載荷

附件套件和安裝套件STAR標準負載專門設計用于在正常環境條件下運行。套件包含所有必要的零件，包括每個潤滑點的轉換接頭M10X1和G1/8。與附件套件不同，安裝套件已包含軟管。

梁夾安裝

附件及安裝套件STAR標準載荷1點65 mm梁夾安裝包含 3 米軟管

商品號: 116961

附件及安裝套件STAR標準載荷2點65 mm梁夾安裝包含 5 米軟管

商品號: 116963

附件及安裝套件STAR標準載荷1點65 mm梁夾安裝不含軟管

商品號: 116951

附件及安裝套件STAR標準載荷2點65 mm梁夾安裝不含軟管

商品號: 116953

網掛安裝

附件及安裝套件STAR標準載荷1點網掛安裝包含 3 米軟管

商品號: 116962

附件及安裝套件STAR標準載荷2點網掛安裝包含 5 米軟管

商品號: 116964

附件及安裝套件STAR標準載荷1點網掛安裝不含軟管

商品號: 116952

附件及安裝套件STAR標準載荷2點網掛安裝不含軟管

商品號: 116954

附件及安裝配件組套STAR重載

附件套件和安裝套件Star 重載專門設計用于環境條件惡劣的操作區域。該套件包含所有必要的零件，包括一個重載保護帽、一個帶手動閥的吹掃接頭和轉換接頭M10X1和G1/8。與附件套件不同，安裝套件已包含軟管。

梁夾安裝

附件及安裝套件STAR重載1點65 mm梁夾安裝包含3米軟管

商品號: 116965

附件及安裝套件STAR重載2點65 mm梁夾安裝包含 5 米軟管

商品號: 116967

附件及安裝套件STAR重載1點65 mm梁夾安裝不含軟管

商品號: 116955

附件及安裝套件STAR重載2點65 mm梁夾安裝不含軟管

商品號: 116957

網掛安裝

附件及安裝套件STAR重載1點網掛安裝包含 3 米軟管

商品號: 116966

附件及安裝套件STAR重載2點網掛安裝包含 5 米軟管

商品號: 116968

附件及安裝套件STAR重載1點網掛安裝不含軟管

商品號: 116956

附件及安裝套件STAR重載2點網掛安裝不含軟管

商品號: 116958

安裝配件組套STAR標準載荷

梁夾安裝

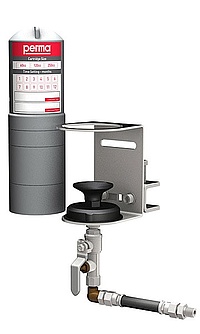

安裝套件STAR標準載荷1點30 mm梁夾安裝包含 2 米軟管

商品號: 110074

1 x 109663 Bracket STAR Standard Duty 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷1點65 mm梁夾安裝包含 2 米軟管

商品號: 110075

1 x 109663 Bracket STAR Standard Duty 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷2點30 mm梁夾安裝包含 4 米軟管

商品號: 110076

1 x 109667 Bracket STAR Standard Duty 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷2點65 mm梁夾安裝包含 4 米軟管

商品號: 110077

1 x 109667 Bracket STAR Standard Duty 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷3點30 mm梁夾安裝包含 6 米軟管

商品號: 110078

1 x 109670 Bracket STAR Standard Duty 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷3點65 mm梁夾安裝包含 6 米軟管

商品號: 110079

1 x 109670 Bracket STAR Standard Duty 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷4點30 mm梁夾安裝包含 8 米軟管

商品號: 110080

1 x 109673 Bracket STAR Standard Duty 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

8 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷4點65 mm梁夾安裝包含 8 米軟管

商品號: 110081

1 x 109673 Bracket STAR Standard Duty 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

8 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套STAR重載

梁夾安裝

安裝套件STAR重載1點30 mm梁夾安裝包含2米軟管

商品號: 110082

1 x 109664 Bracket STAR Heavy Duty C-section 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載1點65 mm梁夾安裝包含 2 米軟管

商品號: 110083

1 x 109664 Bracket STAR Heavy Duty C-section 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載2點30 mm梁夾安裝包含 4 米軟管

商品號: 110084

1 x 108648 Bracket STAR Heavy Duty C-section 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載2點65 mm梁夾安裝包含 4 米軟管

商品號: 110085

1 x 108648 Bracket STAR Heavy Duty C-section 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載3點30 mm梁夾安裝包含 6 米軟管

商品號: 110086

1 x 109671 Bracket STAR Heavy Duty C-section 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載3點65 mm梁夾安裝包含 6 米軟管

商品號: 110087

1 x 109671 Bracket STAR Heavy Duty C-section 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載4點30 mm梁夾安裝包含 8 米軟管

商品號: 110088

1 x 109674 Bracket STAR Heavy Duty C-section 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109957 Beam clamp 30 mm

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載4點65 mm梁夾安裝包含 8 米軟管

商品號: 110089

1 x 109674 Bracket STAR Heavy Duty C-section 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109958 Beam clamp 65 mm

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套STAR標準載荷

網掛安裝

安裝套件STAR標準載荷1點網掛安裝包含 2 米軟管

商品號: 110090

1 x 109665 Bracket STAR Standard Duty cage hanger 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷2點網掛安裝包含 4 米軟管

商品號: 110091

1 x 109668 Bracket STAR Standard Duty cage hanger 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷3點網掛安裝包含 6 米軟管

商品號: 110092

1 x Bracket STAR Standard Duty cage hanger 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR標準載荷4點網掛安裝包含 8 米軟管

商品號: 110093

1 x Bracket STAR Standard Duty cage hanger 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

8 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套STAR重載

網掛安裝

安裝套件STAR重載1點網掛安裝包含 2 米軟管

商品號: 110094

1 x 109664 Bracket STAR Heavy Duty C-section 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109959 Cage hanger arm

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載2點網掛安裝包含 4 米軟管

商品號: 110095

1 x 108648 Bracket STAR Heavy Duty C-section 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109959 Cage hanger arm

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載3點網掛安裝包含 6 米軟管

商品號: 110096

1 x 109671 Bracket STAR Heavy Duty C-section 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109959 Cage hanger arm

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR重載4點網掛安裝包含 8 米軟管

商品號: 110097

1 x 109674 Bracket STAR Heavy Duty C-section 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 109959 Cage hanger arm

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m 109695 Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

安裝配件組套STAR軌道安裝

安裝套件STAR 1點軌道安裝包含 2 米軟管

商品號: 110098

1 x 110014 Bracket STAR rail mount 1-point G1/4 female

1 x 109420 Support flange STAR G1/4 male x G1/4 female

1 x 108606 Cover clip for protection cap STAR

1 x 109999 Protection cap STAR VARIO Heavy Duty 250

1 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

1 x 109849 Angle 90° R1/4 male x G1/4 female

2 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

2 m 101555 Heavy Duty hose

1 x 109953 Reducer R1/8 male x G1/4 female

1 x 109954 Reducer R1/4 male x G1/4 female

1 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR 2點軌道安裝包含 4 米軟管

商品號: 110099

1 x 110015 Bracket STAR rail mount 2-point G1/4 female

2 x 109420 Support flange STAR G1/4 male x G1/4 female

2 x 108606 Cover clip for protection cap STAR

2 x 109999 Protection cap STAR VARIO Heavy Duty 250

2 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

2 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

4 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

2 x 109953 Reducer R1/8 male x G1/4 female

2 x 109954 Reducer R1/4 male x G1/4 female

2 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR 3點軌道安裝包含 6 米軟管

商品號: 110100

1 x 110016 Bracket STAR rail mount 3-point G1/4 female

3 x 109420 Support flange STAR G1/4 male x G1/4 female

3 x 108606 Cover clip for protection cap STAR

3 x 109999 Protection cap STAR VARIO Heavy Duty 250

3 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

3 x 109849 Angle 90° R1/4 male x G1/4 female

6 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

6 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

3 x 109953 Reducer R1/8 male x G1/4 female

3 x 109954 Reducer R1/4 male x G1/4 female

3 x 104840 Reducer M10x1 male x G1/4 female

安裝套件STAR 4點軌道安裝包含 8 米軟管

商品號: 110101

1 x 110017 Bracket STAR rail mount 4-point G1/4 female

4 x 109420 Support flange STAR G1/4 male x G1/4 female

4 x 108606 Cover clip for protection cap STAR

4 x 109999 Protection cap STAR VARIO Heavy Duty 250

4 x 113972 Purge connection with manual valve R1/4 male x G1/4 female

4 x 109849 Angle 90° R1/4 male x G1/4 female

4 x 101554 Hose connector G1/4 male for hose i? 9.5 mm

8 m 101555 Heavy Duty hose

0,5 m Hose spiral guard 25 mm

4 x 109953 Reducer R1/8 male x G1/4 female

4 x 109954 Reducer R1/4 male x G1/4 female

4 x 104840 Reducer M10x1 male x G1/4 female

配件組套ULTRA

配件組套ULTRA標準載荷1點65mm梁夾安裝不含軟管

商品號: 116335

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

配件組套ULTRA標準載荷1點網掛安裝不含軟管

商品號: 116336

1 x Mounting bracket ULTRA

2 x Cage hanger arm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

配件組套ULTRA重載1點65mm梁夾安裝不含軟管

商品號: 116337

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

配件組套ULTRA重載1點網掛安裝不含軟管

商品號: 116338

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝組套ULTRA

安裝組套ULTRA標準載荷1點65mm梁夾安裝含 5 米軟管

商品號: 116339

1 x Mounting bracket ULTRA

2 x Beam clamp 65 mm

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝組套ULTRA標準載荷1點網掛安裝含 5 米軟管

商品號: 116340

1 x Mounting bracket ULTRA

2 x Cage hanger arm

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝組套ULTRA重載1點65mm梁夾安裝含 5 米軟管

商品號: 116341

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Beam clamp 65 mm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male

安裝組套ULTRA重載1點網掛安裝含 5 米軟管

商品號: 116342

1 x Mounting bracket ULTRA

1 x Protection cap ULTRA Heavy Duty

5 m Extreme Heavy Duty hose up to +100 °C o? 11.8 mm x i? 6.4 mm

2 x Cage hanger arm

1 x T-Adapter 2 x G1/4 female x R1/4 male

1 x Hydraulic-type lubricating nipple R1/4

2 x Hose connector 9/16"-18 UNFi JIC male with union nut for Extreme Heavy Duty hose o? 16 mm

2 x Hexagon-nipple 9/16 JIC male x R1/4 male straight for tube connection

1 x Reducer G1/8 male x G1/4 female

1 x Reducer M10x1 male x G1/4 female

1 x Angle 90° R1/4 male x 9/16 JIC male
